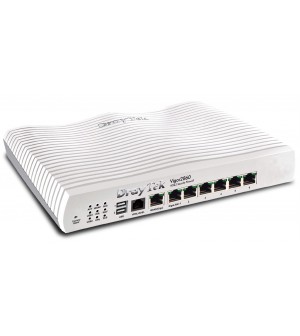

Vigor2860 – Series (Dual WAN)
About
Vigor2860 series security firewall routers have built-in VDSL2/ADSL2+ modem, plus a second Ethernet WAN port for Cable or Satellite broadband, and 2 USB ports for 3G/4G mobile broadband access. With the multi-WAN accesses, Vigor2860 series router supports multi-wan fail-over and load-balancing for USB WANs, VDSL2/ADSL2+, FTTx broadband. If your premise can not subscribe fixed broadband line, you can rely on the 3G/4G LTE (connected to USB WANs) as primary connection.
Specification
Hardware Interface
– 1 x VDSL2/ADSL2/2+ WAN Port (WAN1), RJ-11 for Annex A/RJ-45 for Annex B
– 1 x 10/100/1000Base-Tx, RJ-45 (WAN2)
– 6 x 10/100/1000Base-Tx LAN Switch, RJ-45
– 2 x Detachable Antennas (n Model)
– 3 x Detachable Antennas (n-plus Model)
– 2 x FXS and 1 x Life Line Port, RJ11 (Vn-plus Model)
– 2 x USB Host 2.0
– 1 x Factory Reset Button
– 1 x Wireless On/ Off/ WPS Button
– 1 x VDSL2/ADSL2/2+ WAN Port (WAN1)
Wi-Fi Frequency
11b/g/n : 2.412 ~ 2.462GHz (USA)
2.412 ~ 2.472GHz (Europe ETSI)
11a/an/ac : 5.150 – 5.250 & 5.725 – 5.825 GHz (USA)
5.150 – 5.250 & 5.470 – 5.725GHz (Europe ETSI)
Temperature
– Operating : 0°C ~ 45°C
– Storage : -25°C ~ 70°C
Humidity
– 10% ~ 90% ( non-condensing )
Power Adapter
– DC 12V @ 1.5A ~ 2A
Max. Power
– 24 Watt
Dimension
– L241 * W165 * H44 (mm)
